When the Airbus A380 entered commercial service on 25 October 2007 with
Singapore Airlines, it not only introduced the world’s largest passenger aircraft but also redefined what high-capacity air travel could look like. Built to carry more than 850 passengers on a single flight, the A380’s full double-deck design pushed engineers to rethink conventional aircraft layouts. One of its most intriguing features is the cockpit’s unusual position on its own intermediate level, rather than on either passenger deck.
Unlike the Boeing 747, whose raised cockpit was originally a by-product of cargo-focused design, Airbus took a passenger-first approach, using this configuration to maximize space, improve efficiency, and streamline operations. From reducing pilot training time to enhancing aerodynamics and freeing up both decks for passengers, the decision was far from arbitrary. This article explores why Airbus chose such an unconventional solution and what it reveals about the A380’s design philosophy.
Where Exactly Is The A380 Cockpit?

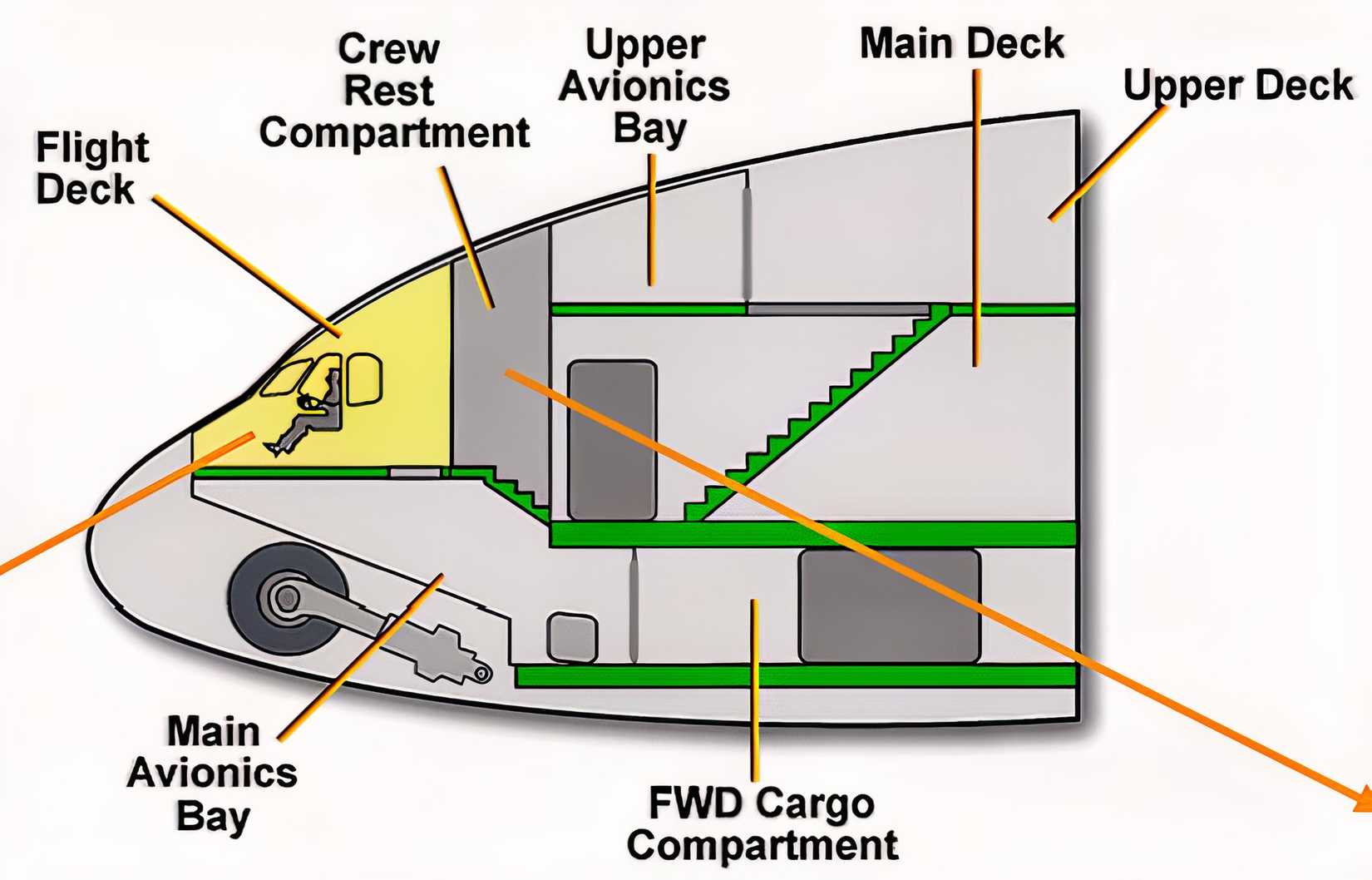

As depicted in the diagram above, the A380’s cockpit is neither located on the main deck nor the upper deck; instead, it occupies its own dedicated intermediate space between the two. This distinctive configuration sets it apart from aircraft like the Boeing 747, whose raised upper-deck cockpit was originally designed to allow for a hinged nose door, enabling cargo loading if the aircraft were used as a freighter.
Access to the A380’s cockpit reflects this unique layout. Pilots reach it via a short flight of stairs from the main deck, positioned just ahead of the staircase leading up to the upper passenger deck. Dubai360 contains 360° photos and videos, including a 3D virtual tour of the cockpit.
Positioning the cockpit between the two main passenger decks offers several operational advantages. Most notably, it keeps the pilots’ eye height closely aligned with that of other Airbus widebody aircraft, making ground maneuvering and taxiing more intuitive. At the same time, this placement contributes to improved aerodynamic shaping of the aircraft’s nose, reducing drag and lowering noise levels within the cockpit, enhancing overall flight deck comfort and performance.
Reason 1: The 747 Did It For Completely Different Reasons — And Airbus Didn’t Need To
The A380’s cockpit placement reflects a different design philosophy than Boeing’s 747. Understanding one requires examining the other.

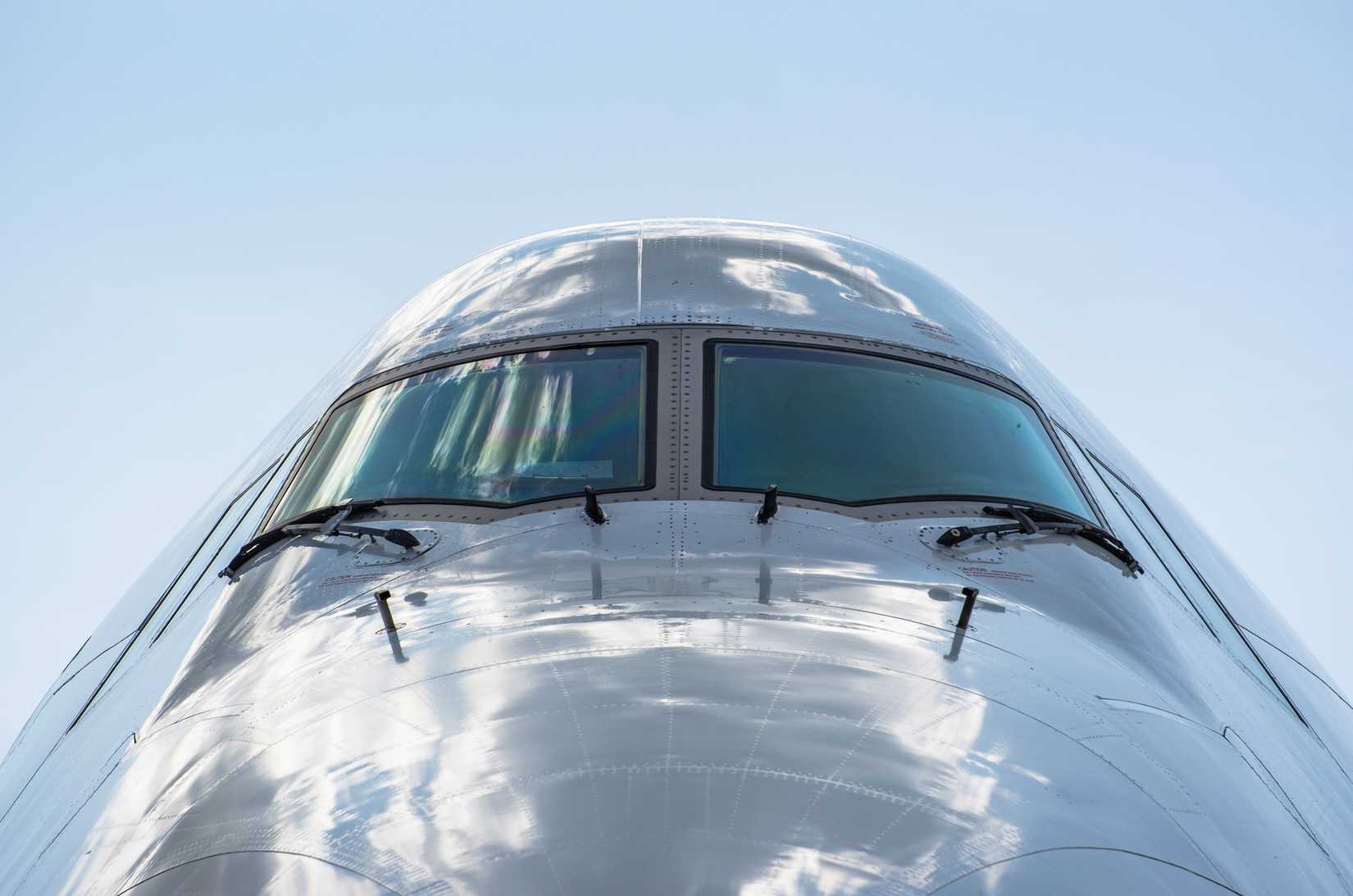

The Boeing 747 was originally designed with cargo operations in mind. Engineers elevated the cockpit above the main deck specifically to accommodate a hinged nose door, allowing cargo to be loaded directly into the fuselage. This raised cockpit created extra space behind it, which airlines later converted into a small passenger lounge and eventually into a compact upper-deck cabin, producing the iconic 747 hump. However, this upper deck was never intended to function as a full passenger level. It was essentially a byproduct of cargo-focused engineering.
By contrast, Airbus approached the A380 as a passenger-first aircraft from the beginning, designing it from the ground up for high-capacity passenger transport. While the 747’s hump emerged as an architectural compromise, the A380’s full-length second floor represented a strategic choice to optimize passenger volume and cabin flexibility. This fundamental difference in design philosophy (cargo adaptability versus purpose-built passenger capacity) shaped not only the external profiles of these aircraft but also their operational versatility and commercial appeal.
Inside The Boeing 747’s Upper Deck Layout
From a secluded cocktail bar to a high-density seating zone, the evolution of the 747’s upper deck reflects the changing priorities of aviation.
Reason 2: Fleet Commonality — Reducing Pilot Training Costs Across the Entire Airbus Family
.jpg?q=49&fit=crop&w=500&dpr=2)
Arguably the most commercially significant reason behind the A380’s cockpit placement was Airbus’s long-standing commitment to cockpit commonality across its aircraft family, a strategy the manufacturer openly emphasized from the beginning. As Airbus noted, although the A380 features the widest cabin in the world and a larger, more advanced flight deck, pilots transitioning from other Airbus aircraft can adapt to it quickly, with training times significantly shorter than those required for aircraft without such design consistency.
In practice, this commonality has a major impact on pilot training. For example, pilots already qualified on the A320 can transition to the much larger, four-engine A380 with reduced training requirements, typically involving shorter ground school and as few as five simulator sessions. In contrast, pilots without prior Airbus fly-by-wire experience require far more extensive preparation. This efficiency stems from Airbus’s deliberate effort to standardize cockpit layout, systems logic, and handling philosophy across its entire range of aircraft, from the A320 family through to widebodies like the A330, A340, A350, and the A380.
Even the longest cross-crew qualification within the Airbus family, transitioning from an A320 to an A380, can take as little as around 11 days, a fraction of the time needed for a full type rating. Familiarity extends to small but important details as well; for instance, consistent flap settings and callouts across all Airbus aircraft mean that procedures remain the same regardless of aircraft size. The result is a seamless transition for pilots, reducing training costs for airlines while enhancing operational flexibility across fleets.
Reason 3: It Keeps the Pilot Eye Height Consistent — Making Ground Handling Safer
One of the key considerations in designing the A380’s cockpit was ensuring optimal visibility for pilots. By positioning the cockpit between the two main passenger decks, Airbus was able to maintain a pilot eye height very similar to that of other Airbus aircraft, making ground maneuvering and taxiing far more intuitive.
This is of high importance in operational terms due to the size of the A380. It is an enormous aircraft, and its size presents unique challenges. By keeping the pilot’s visual perspective consistent with other Airbus widebodies, pilots can judge clearances, runway distances, and ground proximity in much the same way they are already familiar with, rather than having to adapt to a completely different viewpoint.
Additionally, Thales head-up displays show critical flight information symbols superimposed onto external visual cues, including the landscape, the horizon, and runways, in the pilots’ forward field of view. Live pictures streamed from external cameras mounted under the nose and on the tailfin can be displayed on one of the screens to assist the flight crew with ground steering. A graphical representation of airport runways and taxiways helps with navigation.
Reason 4: Aerodynamics and Noise — A Technical Benefit Built Into the Location
The intermediate cockpit placement delivers significant aerodynamic and acoustic advantages that benefit the entire aircraft. The flight deck must sit near the forward fuselage to minimize the window wraparound radius, allowing both pilots clear sightlines to either side. Positioning the cockpit at this mid-level enhances airflow around the nose, creating a smoother aerodynamic profile that reduces drag while simultaneously decreasing noise levels in the flight deck itself. While most aircraft cabins typically register between 75 and 80 decibels during cruise, the A380’s upper deck can be as quiet as 68 decibels. The exact differences are illustrated in the table below.
|
Aircraft Type |
Mid-Cabin Cruise Noise Approx. (dB) |
|---|---|
|
Airbus A380 (Upper Deck) |
68 dB |
|
Airbus A350-1000 |
70 dB |
|
Boeing 787 Dreamliner |
71 dB |
|
Boeing 747-8 |
72 dB |
|
Boeing 777-300ER |
73 dB |
This acoustic benefit results from the upper deck’s greater separation from the engine pylons and fuselage skin vibration. On single-deck aircraft or even on the A380’s own main deck, passengers sit considerably closer to the engines’ bypass fans, experiencing more pronounced ambient noise. On the upper deck, however, this increased distance means that engine sound is attenuated and feels far more remote, enabling passengers to hold conversations at normal speaking volumes, a comfort often unavailable on the Boeing 747 or older 777 variants.
Here’s Why The Boeing 737’s Cockpit Is Louder Than The Airbus A320’s
Find out what influence the design of an aircraft’s nose has on cockpit noise.
Reason 5: It Freed Both Decks to Serve as Full Passenger Cabins
Placing the cockpit on its own intermediate level allowed Airbus to fully utilize both the main and upper decks for passengers, without compromising cabin space or layout.
Unlike the Boeing 747, which features a partial upper deck created as a byproduct of its raised cockpit, the A380 was designed from the outset as a true full-length double-deck aircraft. This was a deliberate strategy to maximize internal volume and address a key limitation of hub-and-spoke travel: increasing passenger capacity without exceeding airport size constraints. By offering two continuous decks within the standard 80-meter gate limit, airlines could significantly boost passenger numbers at slot-constrained airports without increasing the aircraft’s physical footprint.
As a result, the A380 can accommodate up to 853 passengers in a single-class configuration, far surpassing the capacity of aircraft like the Boeing 747-8, and highlighting Airbus’s focus on efficiency through intelligent design.
The Cockpit Technology Itself: A380’s Advanced Glass Flight Deck
For years, Airbus maintained essentially the same cockpit architecture across the A320, A330, and A340. When the A380 arrived, however, it marked a significant departure.
The superjumbo introduced Airbus’s first major flight deck evolution: eight large LCD screens plus two additional displays functioning as an electronic flight bag. More significantly, Airbus moved away from traditional knob-and-button interfaces in favor of graphical controls. Cursor control devices and QWERTY keyboards for the Flight Management System enabled pilots to interact with onboard systems through point-and-click navigation rather than relying solely on physical switches and menu scrolling.
Behind the displays, Airbus completely overhauled its flight management software, creating a platform sophisticated enough to manage the A380’s operational complexity while establishing the foundation for the A350 that followed. This represented not simply a larger cockpit for a larger aircraft, but a fundamental reimagining of pilot-aircraft interaction in modern widebody operations.
