The Boeing 737 sits unusually close to the aircraft apron, a design choice that traces its origins back to the 1960s, when many airports lacked jet bridges, high-loaders, and large amounts of ground service equipment. Keeping the jet’s fuselage low made boarding via the stairs easier, sped up baggage handling, and simplified maintenance on the aircraft. It also locked the aircraft into short landing gear and a tight space under the wing. Decades later, that constraint collided with a very modern demand for lower fuel burn. High-bypass turbofans deliver big efficiency gains, and their fans continue to grow in diameter.
When
Boeing re-engined the 737 into the MAX, it was required to fit larger CFM LEAP-1B engines underneath an airframe with a stance that was set far before today’s engine physics and overall competitive pressures. The result was thus not a simple swap, but rather a chain reaction that started with engine positioning, and then nacelle shape and gear geometry, before it ultimately resulted in alterations to the aircraft’s aerodynamics and flight-control logic. All of these were linked back to ground clearance. This article analyzes how the Boeing 737’s low-slung heritage shaped the MAX’s layout, why Boeing moved the engines forward and higher, and what design compromises followed from trying to modernize an old platform without redesigning it from scratch. This is a story about constraints, tradeoffs, and cascading engineering effects.
A Short-Haul Workhorse With Operational Flexibility
The original Boeing 737 aircraft was designed by the manufacturer to serve as a major workhorse for aircraft operating short-haul networks. The aircraft’s primary value proposition was that it could operate at smaller fields with relatively minimal support equipment. A low-set fuselage meant that passengers could climb stairs rather than rely on jet bridges, and bags could be loaded without tall conveyors or specialized trucks.
This, from a practical standpoint, influenced almost everything beneath the wing, including the aircraft’s shorter landing gear, low-slung nacelles, and tight clearances as the airplane rolled over uneven pavement or debris. In the early days, this was not a problem, as the Boeing 737’s first engines were comparatively small and sat quite neatly under the wing. The trouble is that airframes age slowly while propulsion technology springs ahead, creating a difficult challenge for the airline to work around.
As airlines pushed for better fuel economy, engines grew wider in order to move more air with significantly less energy. On later iterations of the Boeing 737, the manufacturer was forced to get creative to both accommodate and support the massive aircraft. Specifically, the planemaker began reshaping nacelles and packaging accessories carefully in order to preserve the aircraft’s signature close-to-the-ground stance. By the time the Boeing 737 MAX arrived, the jet’s ground-hugging heritage was no longer just a quirk but rather a central constraint limiting the model’s continued development. The MAX story does not start in certification or software problems but rather with a 1960s decision that was intended to support quick operational turnarounds in a simple fashion for airlines of all sizes.
Bigger Fans Require More Clearance
For an individual who lacks a concrete background in mechanical and aerospace engineering, a ‘re-engine’ seems like a fairly simple improvement on paper and one where few complications could potentially emerge. Passengers need to bolt a new turbofan onto an aircraft and collect the fuel-burn savings. In practice, however, the improvement in efficiency is primarily driven by increasing the fan diameter.
Modern high-bypass engines require a large fan to accelerate a large mass of air gently, which is both more efficient and quieter. The Boeing 737’s low stance leaves limited room between the nacelle and the runway itself, so each jump in engine diameter introduces a host of additional complications for design engineers to manage. The move to a larger high-bypass engine forced compromises, including a distinctive nacelle shaping that was required for the aircraft to maintain appropriate clearance from the ground.

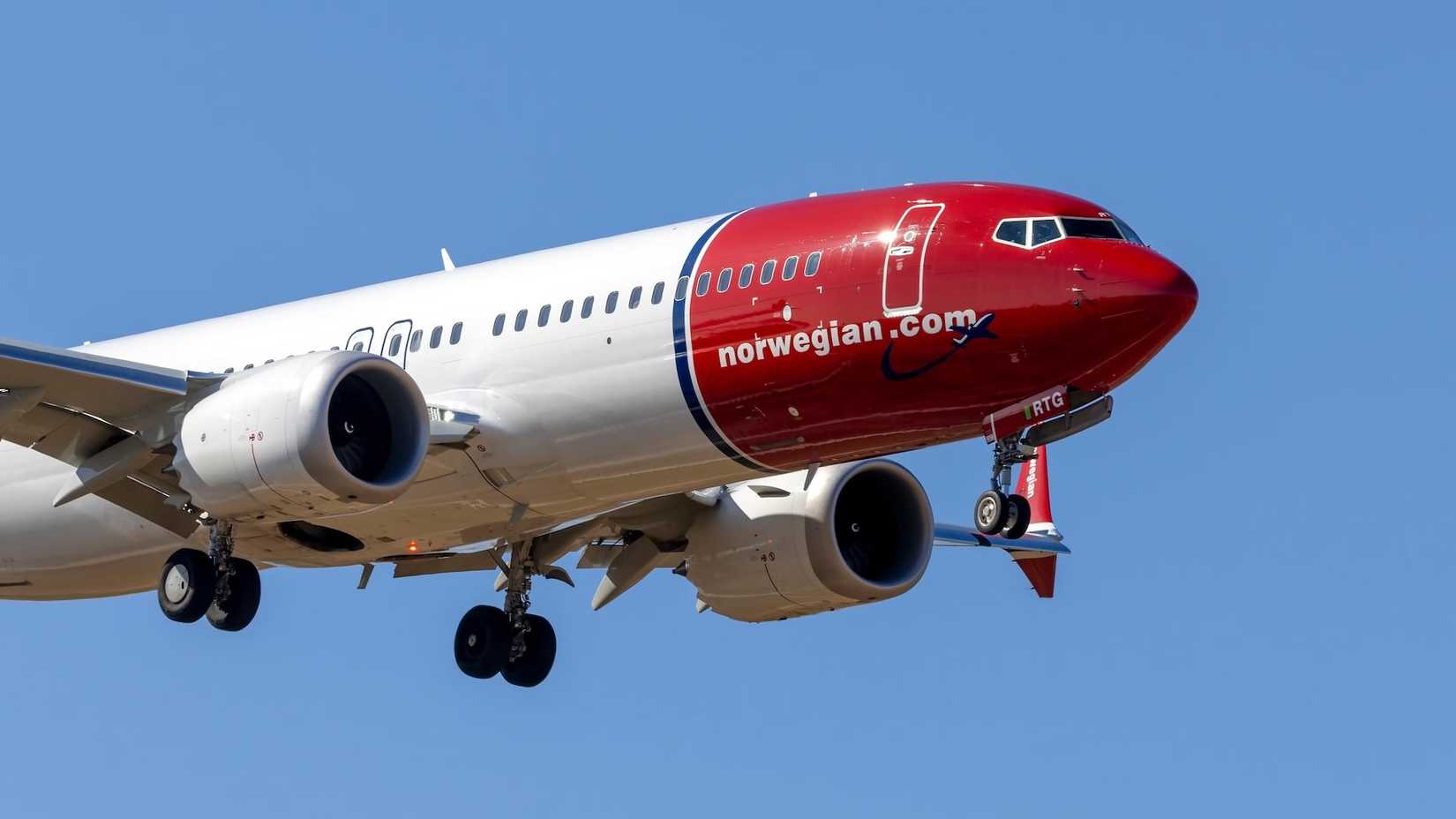

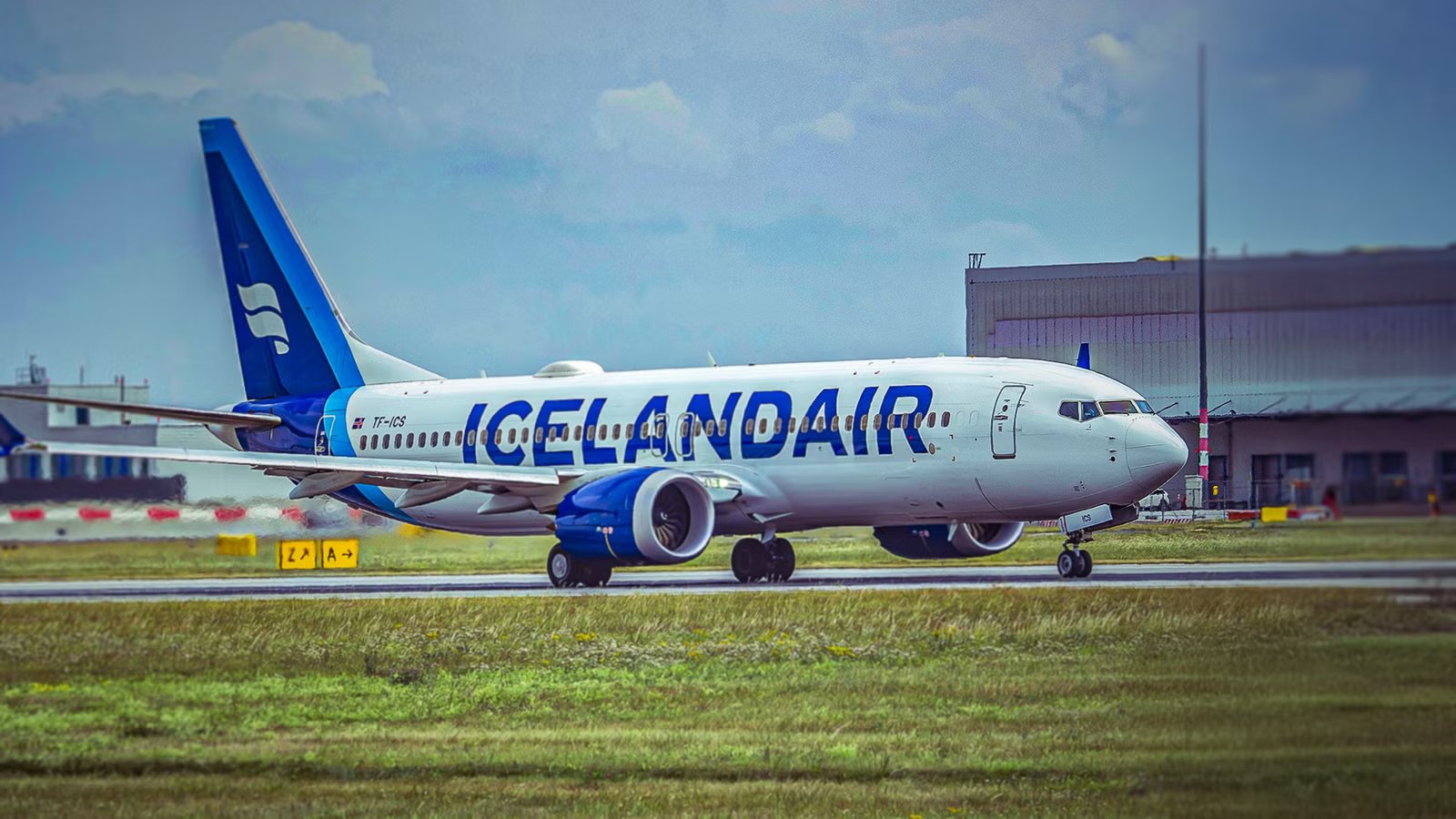

With the Boeing 737 MAX’s LEAP-1B, the clearance discussion became somewhat unavoidable. Analyses of the Boeing 737 MAX family often cite ground clearance similar to that of a regional jet, tight enough that service ramps, sloped taxiways, and stray objects can cause problems. Boeing attempted to find a solution to this by shifting where the engine itself actually lived. The nacelle was shifted slightly forward of the wing’s leading edge and higher relative to the ground, allowing Boeing to keep a large fan without having to completely redesign the aircraft. This relocation, however, was not without aerodynamic and handling consequences, and it explains why the MAX immediately looks different in comparison with the rest of the family before even getting to its unique winglets or other features.
Why Did Boeing Build The 737 MAX With Heightened Gear?
A seemingly minor tweak to the 737 MAX’s design holds a deeper story of engineering ingenuity.
Why Did Boeing Not Just Choose To Raise The Landing Gear?
The obvious fix in this situation sounds relatively simple, as the aircraft could have just been raised off the ground further. However, in practice, this is much easier said than done, as landing gear tends to be one of the trickiest places to add height to an aircraft. Longer landing gear often requires a completely redesigned wheel well, new structural load paths, new doors, retraction geometry, and braking systems. It can also cause changes when it comes to ground handling, such as higher cargo doors, changed jet-bridge alignment, altered boarding stairs, and new clearances under the wing for service vehicles.
These changes add both weight and development time, exactly what a re-engineering program is trying to and designed to avoid. As a result, historically, Boeing leaned on nacelle shaping and clever packaging rather than a wholesome gear redesign. On the 737 MAX, Boeing did apply a limited compromise, documenting MAX differences that included a longer nose gear strut that was around eight inches long.
This was designed to help with clearance and loads, without fully re-designing the main landing gear. But stretching the entire landing gear set would have pushed the Boeing 737 MAX close to new aircraft territory, eroding commonality across variants in the Boeing 737 family, which was the model’s key value proposition. As a result, while a longer landing gear was certainly possible, it was expensive, heavy, and slow. With Boeing racing the Airbus A320neo to the market, this was certainly not the move the manufacturer was going to take.
Repositioned Engines Shaped Aerodynamics
Moving an engine is very different than moving pretty much anything else, as it changes an aircraft’s balance of forces. By placing the LEAP nacelles further forward and mounting them higher, Boeing gained the ground clearance that it was looking for. However, that geometry also changed how nacelles and pylons interact with airflow at higher angles of attack.
A nacelle is a body in the aircraft’s airstream, and, in certain conditions, it can contribute lift and drag in ways that produce a nose-up pitching tendency. Separately, pilots learn early that power changes can create pitching moments depending on where thrust acts relative to an aircraft’s center of gravity. This ultimately changes the engine’s location with respect to the aircraft’s center of gravity in a noteworthy manner.
Boeing redesigned pylons so that engines sit further out in front of the wing, and the altered geometry contributed to different handling characteristics compared with earlier Boeing 737 aircraft. None of this means that the MAX was aiming to climb quicker than ever before, but the placement of these new engines did affect its performance and altered how the aircraft is handled.
Why Can’t The Boeing 737 MAX Be Powered By Any Other Engine Type?
Why the 737 MAX uses only the LEAP-1B: Boeing’s design limits, certification rules, and engine geometry make any other powerplant impossible.
A Look At The CFM LEAP-1B
The CFM LEAP-1B engine is the unique powerplant for the Boeing 737 MAX family, and it is produced by CFM International, a 50/50 joint venture between General Electric Aerospace and Safran Aircraft Engines. The model entered service in 2017, and it is tailored to the packaging limits of the Boeing 737.
CFM and Safran have positioned the LEAP as an engine that reduces overall fuel burn and carbon dioxide emissions by around 15% over previous-generation engines, all while delivering big reductions in noise. Key enabling technologies include resin-transfer-molded composite blades, ceramic-matrix-composite hot-section parts, 3D printed fuel injectors, and lightweight titanium-aluminide low-pressure turbine blades, all of which work together to improve overall efficiency, temperature capabilities, and durability. Here are some specifications for the Boeing 737 MAX’s primary engine from CFM:
|
Category |
Specification |
|---|---|
|
Bypass ratio |
9:1 |
|
Fan diameter |
59.4 inches (176 cm) |
|
Overall pressure ratio |
40:1 |
For airlines, this efficiency translates into longer-range capabilities or additional payload from the same airframe. This also improves overall climb performance and lowers operating costs. The aircraft’s design also leans on additive manufacturing in order to cut part count and improve aircraft cooling.
What Is Our Bottom Line?
The Boeing 737 MAX’s design is ultimately flawed by the fact that the aircraft sits far too close to the ground. As the engine fan needed to be large enough to deliver modern efficiency, Boeing had to fit the large LEAP-1B engine under tight clearance limits without turning the MAX into a completely new aircraft.
This ultimately drives the forward engine placement, which fundamentally reshaped aerodynamics. While this required new pylons and a modest shift to the nose-gear, it did not require the large-scale shifts that raising the aircraft would require.
Those geometric choices altered overall airflow and pitch behavior under certain regimes, ultimately resulting in downstream handling configurations. At the end of the day, the aircraft is built around legacy packaging limits, a constraint that shaped everything that followed.
