As a Boeing 777X gets ready for departure, pilots see something unique from the cockpit: the wingtips move. With a quick selection on the overhead panel, the large wingtips fold down, shifting from a gate-friendly setup to a full-span wing configuration for flight. The transition takes less than 30 seconds, but it makes a dramatic difference, turning the 777X into one of the widest commercial airliners ever built. At first, the purpose of folding wingtips seems straightforward. The 777X was designed around a new, high-efficiency wing with an extensive composite structure to improve fuel economy and performance. Yet, it still needs to operate at airports built for earlier generations of widebody aircraft. Folding wingtips allow the jet to use existing gates and taxiways, reducing the pressure for costly airport infrastructure upgrades.

However, regulators quickly identified a more serious issue: what happens if the aircraft attempts to take off with its wingtips folded or not fully locked? Unlike many configuration mistakes, this is not a situation that leaves much margin for recovery once the takeoff roll is underway. The aerodynamic penalty of reduced wingspan could be especially severe at high weights, on short runways, or under demanding obstacle-clearance conditions. That is why the 777X’s folding wingtips became more than an airport-compatibility feature. They pushed certification into unfamiliar territory, where warnings alone were not considered enough.

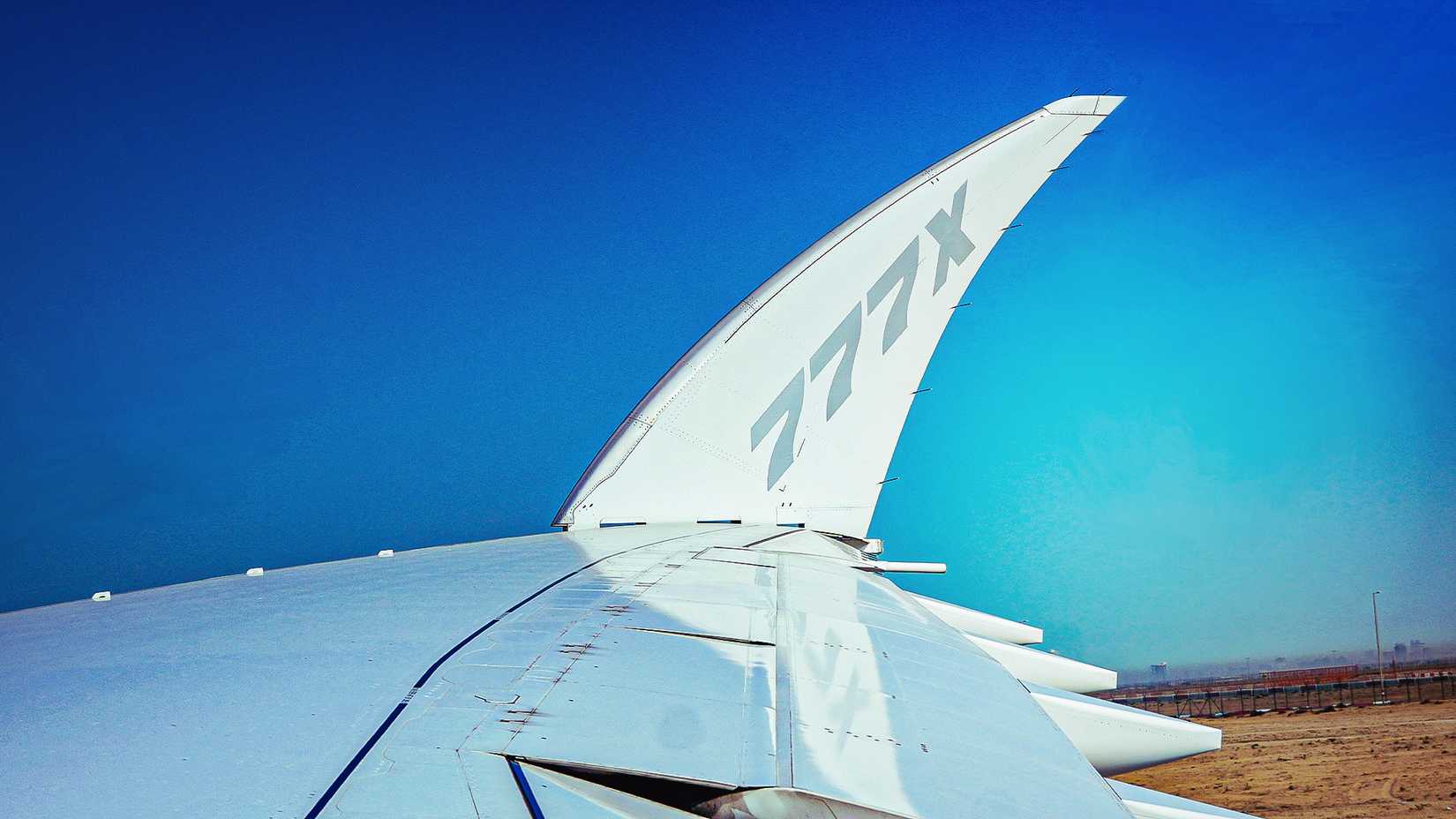

What Makes The Boeing 777X’s Folding Wingtips Different

Credit:

Shutterstock | Simple Flying

The Boeing 777X is the first commercial widebody airliner to incorporate folding wingtips into its transport-category certification basis. When fully extended for flight, the wingspan reaches roughly 235 feet, placing it among the widest commercial aircraft ever built. On the ground, the outer sections fold upward, reducing span to approximately 212 feet, enabling compatibility with airport gates and taxiway layouts designed for earlier Boeing 777 variants.

Unlike folding wings on some military aircraft, which are designed for storage in tight spaces, the 777X system is built for routine airline operations. It must support high dispatch reliability and repeat the same movement thousands of times over its service life. These wingtips are not optional add-ons. They are integrated into the primary wing structure and must carry significant aerodynamic loads during cruise. To reduce complexity and improve reliability, Boeing made several deliberate design choices. The folding sections do not contain fuel tanks or house primary flight controls such as ailerons. That reduces the number of systems passing through the folding joint, limiting the number of interfaces that could create failure modes.

Even with those simplifications, the concept introduced something new for large commercial aircraft. Because the folding mechanism sits directly on the main lifting surface, regulators could not treat it like a minor convenience feature. It had to be assessed as a safety-critical configuration state.

Why Takeoff Configuration Became A Major Regulatory Concern

Credit: Shutterstock

For regulators, the biggest risk associated with folding wingtips was not how they performed in cruise, but how the aircraft could be affected during takeoff. The core concern was the possibility that the aircraft might begin a departure with its wingtips folded or not fully locked. The FAA has described this type of scenario as potentially catastrophic. A reduced wingspan changes lift distribution and overall aerodynamic behavior at the worst possible moment: when the aircraft is heavy, accelerating, and committed to a runway. Unlike issues that can be corrected after liftoff, a wing configuration error can leave crews with limited time and limited options.

To frame the hazard, regulators referenced historical parallels involving gust lock accidents in smaller aircraft. In those cases, crews began the takeoff roll with flight controls restricted, and the results were often fatal. While the 777X wingtip system is not a gust lock, the underlying safety problem is similar: a critical flight surface not being in the required configuration at the moment of departure. Accident history also shows that configuration errors rarely come from a single cause. They often involve distraction during taxi, fatigue, interruptions, rushed departures, or checklist disruption. Airline ground operations are busy by nature, and even small disruptions can knock a crew off rhythm. Regulators recognized that relying solely on procedures and cockpit warnings was insufficient. The 777X needed protection that still worked even if a step was missed. In short, folding wingtips introduced a configuration state that could not be allowed to persist into takeoff.

Related

Delayed Again: Boeing 777X Delivery Timeline Pushes Back To 2027

The long-awaited next-gen widebody will wait even longer to debut.

The Special Conditions: Why Warnings Alone Were Not Enough

Credit: Justin Hayward

Because existing airworthiness standards were not written with movable primary wing structures in mind, the FAA issued special conditions tailored to the 777X wingtip system. These conditions went beyond the traditional expectation that an aircraft should simply warn crews about improper takeoff configuration. Traditional takeoff configuration systems, such as those related to flaps, trim, or spoilers, typically focus on alerting the crew at a critical moment. If the aircraft is not configured correctly, the system provides a warning horn or message, but the aircraft itself often remains capable of continuing the takeoff roll. For the 777X, regulators concluded that the approach was not sufficient. The potential severity of a wingtip configuration error, combined with the limited opportunity for recovery once acceleration begins, meant the system needed stronger safeguards.

The special conditions required multiple independent indications of wingtip position before takeoff, with monitoring logic designed so that a single failure would not remove all alerts at once. Regulators also required that wingtip status be clearly available during taxi, not just at the runway threshold. Most importantly, the certification approach required the aircraft to be designed to inhibit takeoff progression if the wingtips were not fully extended and locked. That shifted the wingtip system from being a reminder to becoming an active safety barrier.

How The 777X Actively Prevents An Unsafe Takeoff

Credit: Shutterstock

The 777X folding wingtip safety architecture uses multiple layers of protection, but its defining feature is its ability to inhibit an unsafe takeoff configuration from progressing. The aircraft continuously monitors wingtip position and lock status using multiple independent signals. If it detects that the wingtips are folded or not properly secured, the system does more than display an advisory. Alerts escalate as the aircraft approaches the takeoff phase, making the condition harder to miss.

Most importantly, the aircraft’s logic is designed so that a takeoff cannot proceed unless the wingtips are fully extended and locked. This is intended as an active barrier that prevents the aircraft from transitioning into a high-speed takeoff roll in an unsafe configuration. This approach matters because it shifts the burden away from last-second recovery. A warning during acceleration forces crews into a narrow decision window, especially when the runway remaining is shrinking. By making wingtip status visible early and tying it directly into takeoff logic, the system is designed to stop the problem before it becomes urgent.

Related

The Boeing 777X’s Folding Wings: How It Works

The Boeing 777X’s innovative design feature has captured global attention. But how do these folding wings actually work?

From Taxi Checks To In-Flight Locking: How The System Stays Safe In Every Phase

Credit: Photo: Justin Hayward | Simple Flying

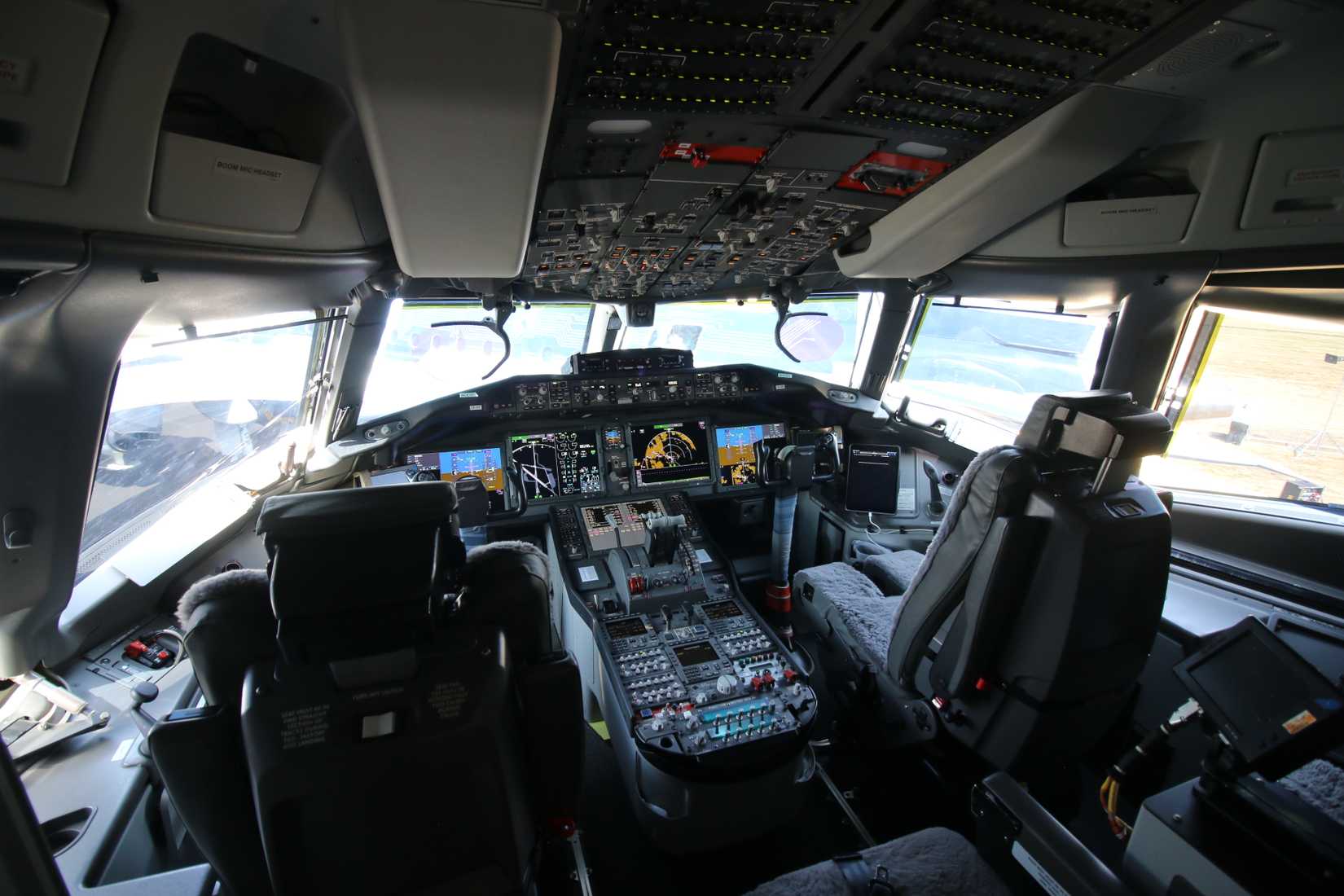

In normal operations, folding wingtips are integrated into the standard pre-departure flow. Pilots control the system using a dedicated overhead switch, extending or folding the wingtips depending on ground movement requirements. The action itself is straightforward, but the status is treated as critical. During preflight and taxi, cockpit displays provide clear wingtip position awareness. A folded or unlocked condition is immediately visible, while a fully extended and locked condition is positively confirmed. If the aircraft approaches takeoff without the required configuration, warnings become increasingly prominent.

Once airborne, the design philosophy changes. The aircraft is not intended to move the wingtips in flight. Instead, the system is secured so that the wingtips cannot move unintentionally. Electrical and hydraulic power required to move the wingtips is isolated, and mechanical locks secure each wingtip to the main wing structure, so the wing behaves as a continuous lifting surface under aerodynamic and inertial loads. On the ground, the system is also designed for demanding environmental conditions. With wingtips folded, the aircraft must remain stable in high-wind scenarios, including gust environments often cited around 65 knots in certification discussions, depending on the aircraft’s state and conditions.

Why The 777X Wingtip System Sets A New Safety Benchmark

Credit: Boeing

The Boeing 777X’s folding wingtips may look like a simple operational feature, but regulators identified a unique hazard: the possibility of a takeoff attempt with a primary wing structure in the wrong configuration, creating a potentially catastrophic outcome with minimal opportunity for recovery. That concern led to special conditions that went beyond normal takeoff warnings. The 777X required multiple independent methods to indicate wingtip status, clear crew awareness during taxi, and a design approach that could inhibit takeoff progression if the wingtips were not fully extended and locked.

The folding wingtip system also helps explain why the 777X certification effort has taken longer than originally expected. Legacy regulations did not anticipate movable primary wing structures on large transport aircraft, requiring Boeing and regulators to develop and validate new safety criteria. That work occurred alongside other program challenges, including GE9X development and structural testing issues, contributing to delays in the aircraft’s entry into service.

Yet the outcome is significant. Certifying the 777X wingtip system does more than approve a single aircraft design. It establishes a framework for evaluating future large commercial aircraft that may incorporate unconventional structures. In that sense, the 777X is not just about folding wingtips; it sets a new benchmark for how modern airliners can be engineered to prevent critical configuration errors before takeoff.
