The Boeing 737 is an anomaly in modern aviation. It is a high-tech digital workhorse built onto a physical frame designed in the mid-1960s. While almost every internal component has been upgraded across 4 generations of the aircraft, several core design features have remained virtually identical since the first Boeing 737-100 rolled out in 1967. This guide explores the engineering nuances that exist even on the MAX today and why Boeing has fought to keep them.

Many of the unchanged features reflect the current state of the narrowbody market as these legacy design choices are not merely aesthetic. In reality, they represent a strategic commitment to commonality, allowing airlines like Southwest Airlines to fly different generations of the plane with minimal retraining. However, this commitment to the past has created unique engineering challenges as the industry moves toward the mid-2020s.

A Fuselage Frozen in Time

Credit: Wikimedia Commons

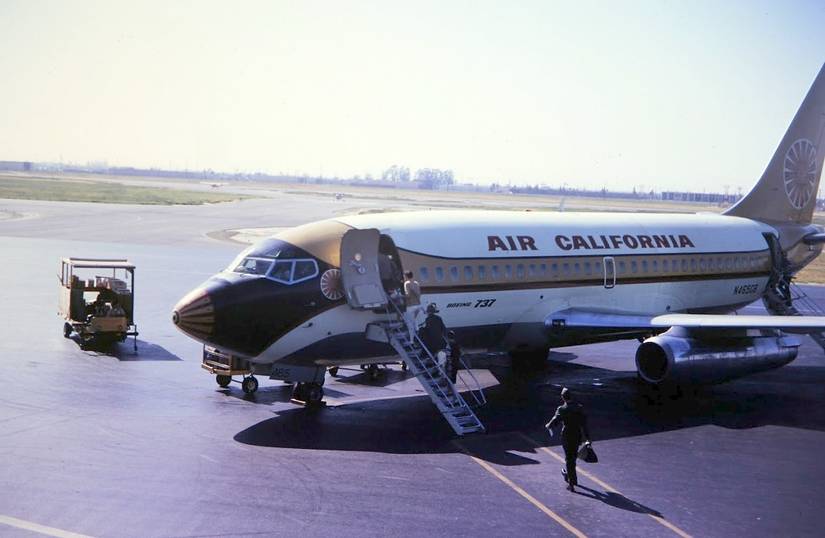

The most significant of these legacy features is the fuselage cross-section, which Boeing directly inherited from its older siblings, the 707 and the 727. This decision was originally made to save on development costs and allowed Boeing to use the same tooling for the upper fuselage and the nose section, technically known as Section 41. Because Boeing has never changed this basic geometry, a brand-new 2026 Boeing 737 MAX has a fuselage that is exactly 148 inches wide.

Developing a new fuselage would have required a massive investment in new manufacturing alterations and a lengthy aerodynamic certification process that could have delayed the original launch for years. By sticking with the 707’s dimensions, Boeing ensured that the 737 was immediately familiar to pilots and mechanics who were already working on the larger transcontinental jets of the time. This provided a widebody feel for a small jet, allowing for 6-abreast seating in an era when most regional planes only offered 4 or 5 seats across.

This legacy design includes the specific curvature of the cockpit windows and the structural frame underneath the dashboard. Even though the eyebrow windows were eventually plugged starting in 2004 to reduce maintenance and noise, the structural frame underneath remains a ghost of the original 1960s design. Today, this narrow fuselage is often cited by passengers as feeling tighter than the Airbus A320, which was designed two decades later with a slightly wider cross-section of 155.5 inches.

Not Like Other Aircraft

Credit: Flickr

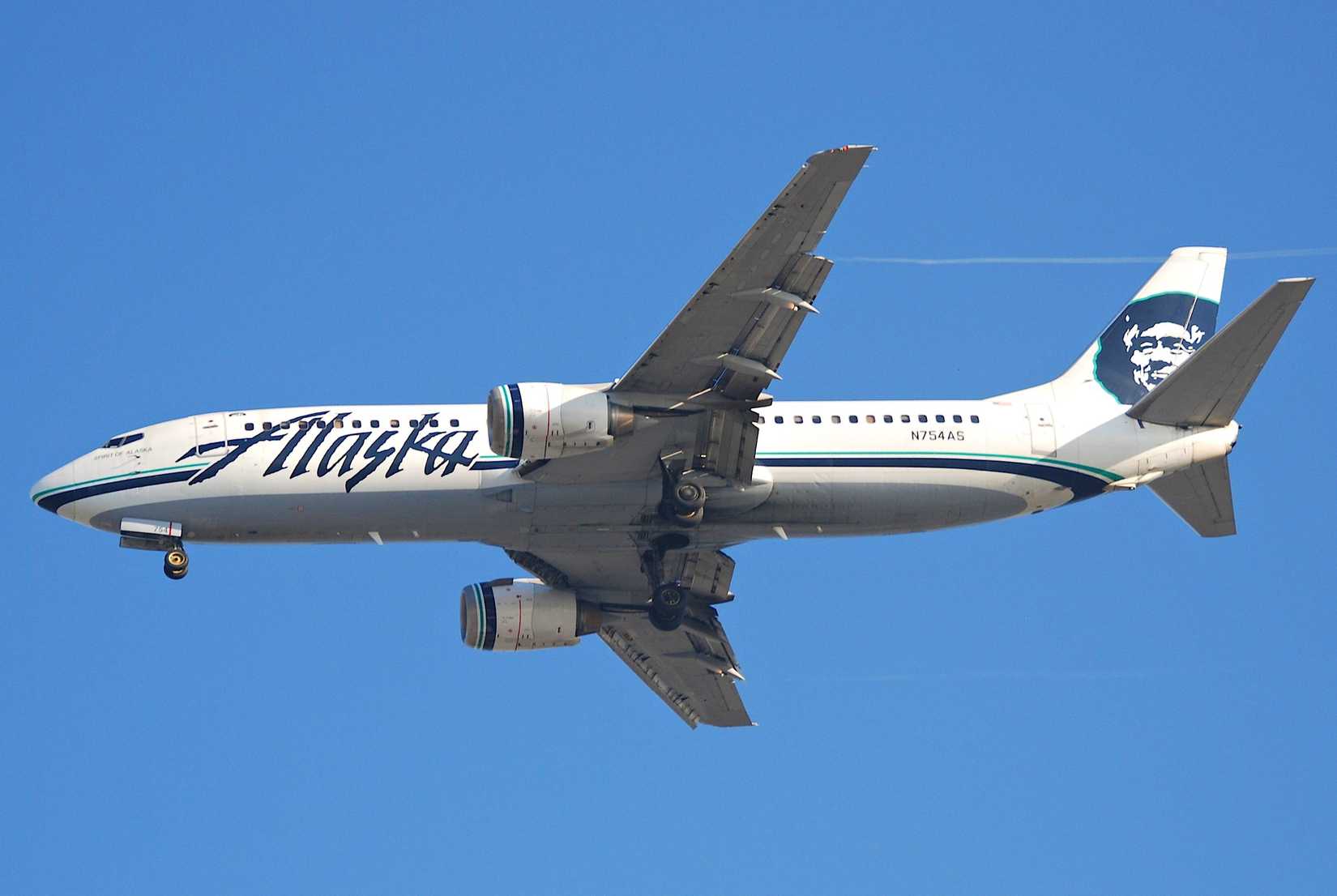

If you look at a 737 in flight or during takeoff, you will notice a feature that is unique among modern airliners. The main landing gear wheels are completely exposed. Unlike the Airbus A320 or the Boeing 787, the 737 has no landing gear doors to cover the wheels once they are retracted into the fuselage. This lack of a smooth belly door is one of the most visible links to the aircraft’s original 1967 blueprints.

In the 1960s, the 737 was intended for short-field operations at small airports that often lacked sophisticated maintenance facilities. Engineers wanted to keep the plane as simple and light as possible and did so by removing complex, heavy gear doors. Engineers eliminated a potential mechanical failure point that would be difficult to repair at remote airfields. To maintain aerodynamics, the outer side of the wheel is fitted with a smooth hubcap, and heavy-duty rubber seals close the gap between the tire and the fuselage skin to reduce drag.

This design choice also keeps the aircraft low to the ground, which was originally a massive benefit for baggage handlers and mechanics who could reach cargo bays and engines without high-lift loaders. However, this low-slung stance eventually became a hurdle for Boeing engineers when they needed to fit larger, more fuel-efficient engines under the wings for future generations. The result was the famous flat-bottom engine nacelle, a direct consequence of the 1967 landing gear height that prevented a perfectly circular engine casing.

Related

How Boeing 737 MAX Fuselages Differ From Its Predecessors

There are several subtle differences in the fuselage of Boeing’s latest narrowbody aircraft.

A True Connection Between Pilot And Plane

Credit: Wikimedia Commons

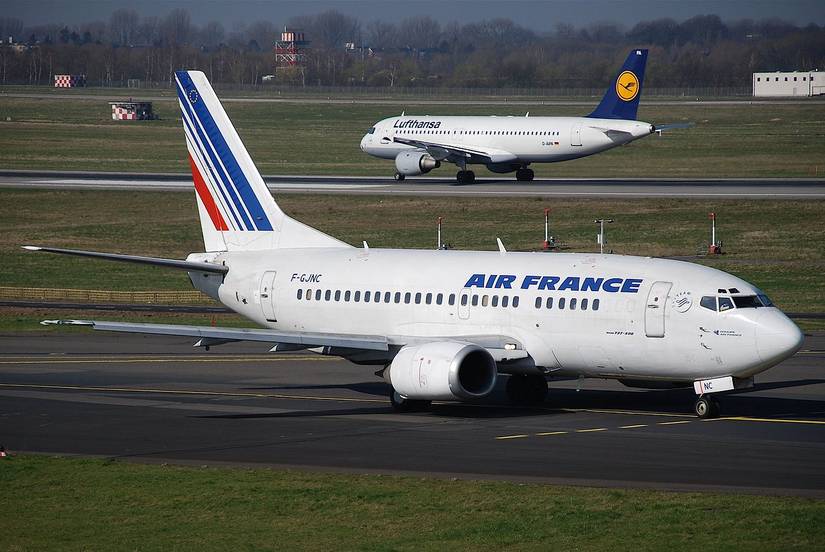

While its primary rival, the Airbus A320, moved to electronic fly-by-wire technology in the 1980s, the Boeing 737 remains the last major jet in production to use a mechanical linkage system. This means that when a pilot moves the yoke in the cockpit, they are physically pulling steel cables that run through the airframe to command power control units. These hydraulic actuators then do the heavy lifting of moving the elevators and ailerons, providing a direct, tactile connection that has remained the standard for the type since 1967.

This mechanical philosophy was retained to ensure that the aircraft felt the same to a pilot transitioning from an older 737 to a next-generation or MAX model. By avoiding the transition to computers for flight control, Boeing avoided the need for expensive new flight simulator training and a completely new type certificate. Pilots appreciate the direct feedback, but it limits the aircraft’s ability to incorporate the advanced safety envelopes and automated protections found on modern fly-by-wire jets like the Airbus family of aircraft.

Maintaining this system into the present day is a testament to the “keeping everything consistent” philosophy that defined Boeing’s early years. However, the complexity of managing these mechanical systems while integrating modern autopilot and flight-augmentation software has proven to be a difficult balancing act. It remains a rare example of 1950s-era mechanical engineering living inside a 21st-century glass cockpit, where the pilot still maintains a literal, physical connection to the wings.

Sitting Low

Credit: Wikimedia Commons

The 737 sits famously low to the ground, a design feature originally intended to allow crews to load luggage and perform maintenance by hand without specialized equipment. In the 1960s, this made the 737 the perfect option for underserved runways in remote areas where high-lift loaders were a luxury. Even today, you can see the 737’s belly sitting much closer to the tarmac than its Airbus competitors, a direct result of the original short landing gear design from 1967.

This low ground clearance has created a domino effect of engineering workarounds as engines have grown larger and more powerful over the decades. To fit modern, high-bypass turbofans under the wing, Boeing had to flatten the bottom of the engine nacelles, giving them the famous hamster pouch look, and move the engines further forward and upward on the wing. This specific structural necessity is what eventually altered the aircraft’s center of gravity, necessitating the software augmentations that defined the MAX era.

Airlines still value the low height for quick turnarounds at airports with limited infrastructure, particularly in developing markets. However, for Boeing, the low-slung stance of the 1967 airframe is the primary reason they cannot simply put even larger, more efficient engines on the current 737 platform without a complete redesign of the landing gear. It represents the physical “ceiling” of how far a 60-year-old airframe can be pushed into the future of fuel efficiency.

Related

Why Did Boeing Stop Developing Planes With Eyebrows?

Once deemed a useful feature, the eyebrow windows gradually lost their utility.

More Manual Than Automatic?

Credit: Shutterstock

One of the most distinct sights and sounds in a 737 cockpit is the manual trim wheel spinning next to the pilots’ knees. While almost every other modern jet uses a small thumb switch or an automated computer to adjust the plane’s pitch trim, the 737 retains a large, mechanical wheel connected directly to a cable system. This is a primary flight control feature that hasn’t changed its basic operation since the inception of the jet in 1967, serving as a visceral link to the era of purely manual flying.

The wheel exists as a critical manual backup in case the electric trim system fails, allowing pilots to physically crank the horizontal stabilizer into the desired position. In an age of digital automation, having a massive spinning wheel in the cockpit seems like an anachronism, but it is a vital part of the 737’s manual-first philosophy. It ensures that the pilot always has a physical, mechanical way to control the aircraft’s pitch, regardless of whether the aircraft’s electrical or computer systems are functioning.

For pilots, the trim wheel provides an immediate visual and auditory cue of what the aircraft is doing, a form of situational awareness that purely electronic systems can sometimes obscure. If the wheel is spinning rapidly, the pilot knows the nose is being adjusted, allowing them to react instantly if the movement is unintended. It is perhaps the most famous example of the 737’s heritage, requiring significant physical strength to operate in extreme scenarios but offering a level of direct control rarely seen in the 2020s.

Is The Future Still Based On The Old?

Credit: Shutterstock

As the industry looks toward the next generation of narrow-body aircraft, the question remains: how much longer can the 1967 design be sustained? The 737 MAX is likely the final evolution of this specific airframe, as Boeing has reached the physical limits of what can be modified within the 148-inch fuselage and low-clearance landing gear.

The practical takeaway for the aviation industry is that the 737 represents the ultimate success of incremental engineering. By keeping the core design unchanged, Boeing created a global standard that allowed for unprecedented fleet growth and pilot mobility across all eras. However, the costs of maintaining that commonality, both in terms of engineering workarounds and the regulatory scrutiny involved in retaining older designs, have risen significantly.

The next clean-sheet Boeing narrow-body will almost certainly move away from the 707-derived cross-section and mechanical cables in favor of a wider cabin and full fly-by-wire technology. But until that successor enters service in the 2030s, every 737 that takes off is a flying time capsule, carrying the engineering DNA of the 1960s into the modern age. It remains a testament to a design that was so robust and adaptable that it became the most successful commercial jet in history.
