In developing the innovative 787, Boeing not only decided to break the mold in aircraft design, but also in how the plane would be built. With the Dreamliner, Boeing would outsource much of the jet’s production to suppliers located around the world, and then transport large components to the final assembly line, located in either North Charleston or Everett (now closed). The new process was meant to be far more cost-effective than the company’s previous assembly process, but of course, the logistics would be challenging.

The quickest method to transport large Dreamliner components is by air, but most freighters are too small to accommodate these parts. The Boeing Dreamlifter is a heavily modified 747 designed specifically to transport 787 components, made possible through a significantly modified fuselage. Only four are in service, and they’re a critical piece in 787 production. While they’re the only aircraft capable of transporting their cargo, they’re also significantly limited in capability as a result.

Overview Of The Boeing Dreamlifter

Credit: Shutterstock

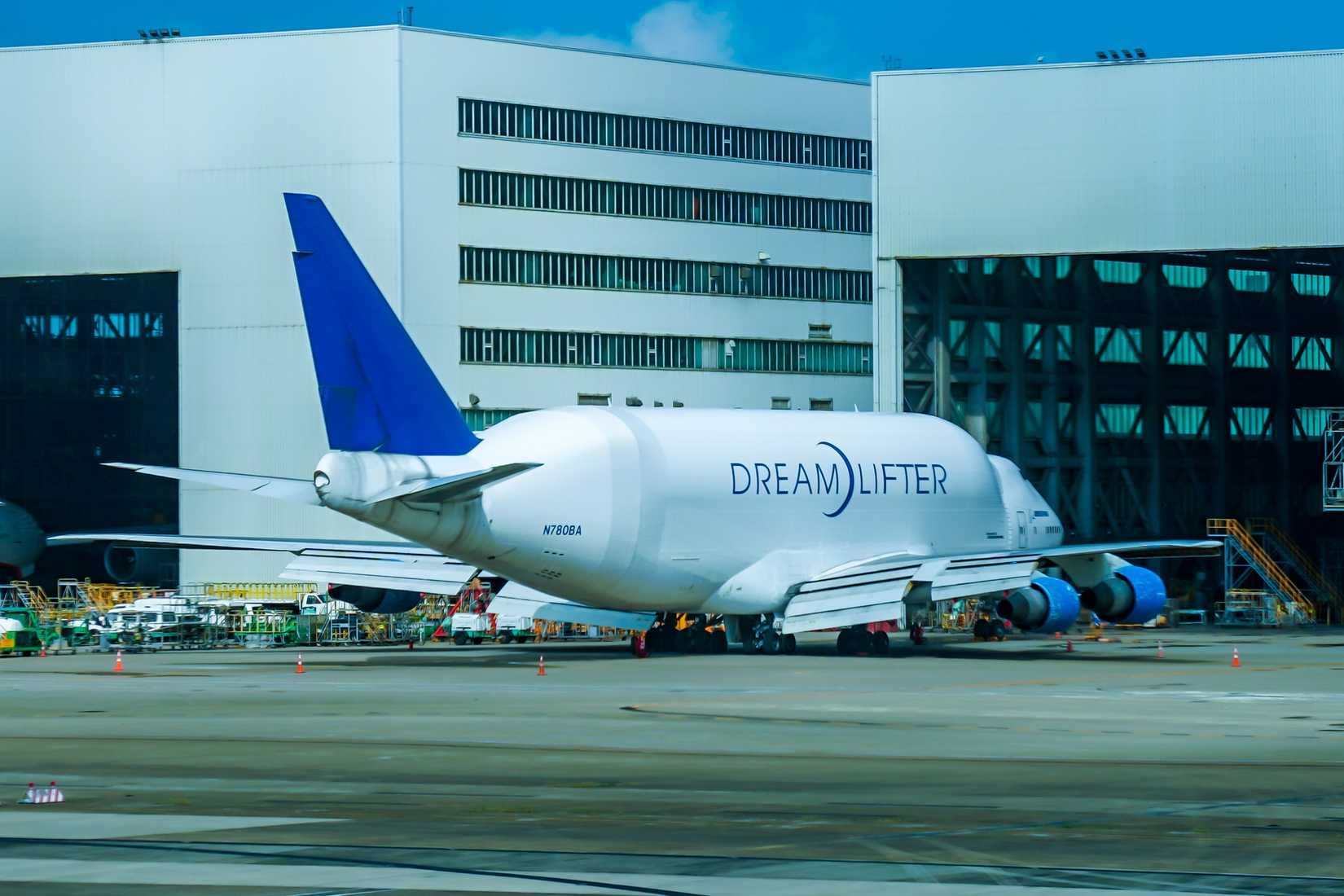

The Dreamlifter is a Boeing 747-400 modified by Boeing to transport outsized cargo. Officially designated as the 747-400LCF (large cargo freighter), the Dreamlifters transport 787 components from Italy, Japan, and Wichita to the Boeing 787 final assembly line in North Charleston, South Carolina. There are four 747-400LCFs in service, three of which entered service in 2008 while the fourth began transporting cargo in 2010. They’re owned by Boeing and leased to Atlas Air, which operates the planes.

The 747-400LCFs essentially serve the same purpose as the Airbus Beluga and Beluga XL, but are based on a Boeing 747 rather than the more modest Airbus A300 or A330. Two of the Dreamlifters were formerly operated by China Airlines, a third by Air China, while the fourth was formerly owned by Malaysia Airlines. All four examples are powered by the Pratt & Whitney PW4056, which received virtually no modifications. In addition, the Dreamlifter retained the cockpit and nose from the 747-400, along with the rear fuselage design.

To accommodate large cargo like 787 fuselage components, the Boeing Dreamlifter features a massive, bulging cargo hold. The appearance is similar to that of the Airbus Beluga, and neither aircraft comes with a pressurized cargo hold. Unique to the 747-400LCF is the swing tail, which is where cargo is loaded or unloaded. In addition, the 747 Dreamlifter features a taller vertical stabilizer, while the iconic canted winglets from the 747-400 were removed for the 747-400LCF.

The Capabilities Of The Boeing Dreamlifter

Credit: Shutterstock

The Boeing 747-400LCF is designed for large payloads that are also light, ie, 787 wings and fuselage components. The plane itself is larger, heavier, and less aerodynamic than a standard 747, which increases fuel burn. The 747-400LCF also has a lower maximum takeoff weight (MTOW) of 364 tons, whereas the standard 747-400 has an MTOW of over 394 tons. With higher fuel burn and a lower gross weight, the Boeing Dreamlifter has a range of only 4,200 NM (7,800 km) when fully loaded.

This range is extremely limiting on paper, but in practice, it’s all the 747 Dreamlifter needs. Its longest regularly scheduled route is from Taranto, Italy, to North Charleston, a distance of 4,472 NM (8,283 km) while transporting 787 center fuselages and horizontal stabilizers. The aircraft visits Nagoya, Japan, for the wings, wingbox, and landing gear well, but stops in Anchorage along the way, breaking up the trip into two medium-length segments. In addition, the Dreamlifter visits Wichita for the forward fuselage.

The 747-400LCF has a lower MTOW than a standard 747-400 as the nature of its mission doesn’t require high gross weights, which saves Boeing money on landing fees. The actual components being transported are relatively light, as seen by the fact that while the 787 is 50% composites by weight, the aircraft’s construction is roughly 80% composites by volume. As such, Boeing eats the fuel burn penalty resulting from the plane’s design, but can save money on fees by designing the 747-400BCF to the exact specifications of the job.

Related

Why In The World Does The Boeing Dreamlifter Fly To Miami?

Why does the largest Boeing jet ever made fly to Miami so much?

The Design Of The Boeing Dreamlifter

Credit: Shutterstock

The Boeing 787 assembly process sees large components being assembled at various production sites scattered around the world, including fuselage sections (constructed via barrels rather than with traditional panels) and entire wings. The purpose of the Dreamlifter is to transport these components on a single flight. This required a completely new fuselage design, engineered by Boeing and manufactured by Evergreen Aviation Technologies Corporation in Taiwan.

The forward part of the fuselage is taken straight from the passenger 747-400 with little modification. The new fuselage features a bulging cargo hold offering three times as much cargo capacity as a standard 747-400F. The Dreamlifter’s interior volume measures 65,000 square feet (1,840 square meters), which is more than even the legendary Antonov AN-225. Because it’s designed specifically to solely carry new aircraft components, the cargo hold is unpressurized and unheated, since this isn’t necessary for the Dreamlifter’s mission.

The Dreamlifter features a swing tail to load components from the rear, which requires the use of a specialized truck. The aircraft has a taller vertical stabilizer for additional directional authority on account of the massive fuselage, and the winglets were removed as they caused excessive vibration, along with other negative handling characteristics. From a pilot’s perspective, the 747-400LCF features the same cockpit as the 747-400, but there are some performance, handling, and systems differences. As such, pilots undergo a short differences course for the Dreamlifter.

Assembling And Delivering A 787

Credit: Shutterstock

Whereas most production for prior aircraft models was completed in-house by Boeing, much of the production for the 787 was outsourced to suppliers. Not only would Boeing’s partners be responsible for manufacturing components, but some would now assemble fully completed sections. The Dreamlifters then fly the sections to Boeing’s final assembly line in North Charleston, South Carolina. The North Charleston facility is the only facility where the 787 is assembled, although Boeing previously operated a second 787 final assembly line in Everett until 2021.

Rather notably, while the 787-8 and 787-9 used to be assembled in both North Charleston and Everett, the 787-10 could only be assembled in North Charleston, as its mid fuselage section, built in North Charleston, is too long to fit inside a Dreamlifter for transport to Everett. Once the pieces arrive, Boeing assembles the components to create a hollow 787. From there, the aircraft’s wiring and systems are installed before workers attach the engines and install the aircraft interiors. Once the plane is completed, it’s put through extensive ground and flight tests before it can be delivered.

Boeing hoped to achieve significant cost reductions through its outsourcing strategy, but production of the 787 Dreamliner has been far from smooth. The overall supply chain proved to be complex, and Boeing had difficulty managing it. There was a notable lack of coordination between different partners, as well as Boeing, and even in recent years, the 787 program has struggled with quality control. While demand for the 787 appears virtually limitless, the aircraft’s production problems have cost Boeing billions.

Related

The Aircraft Replacing The Boeing 747

As Boeing’s flagship, the Boeing 777X is the closest thing to replacing the Jumbo, although it is not a direct replacement.

Comparing The Dreamlifter To The Beluga

Credit: Shutterstock

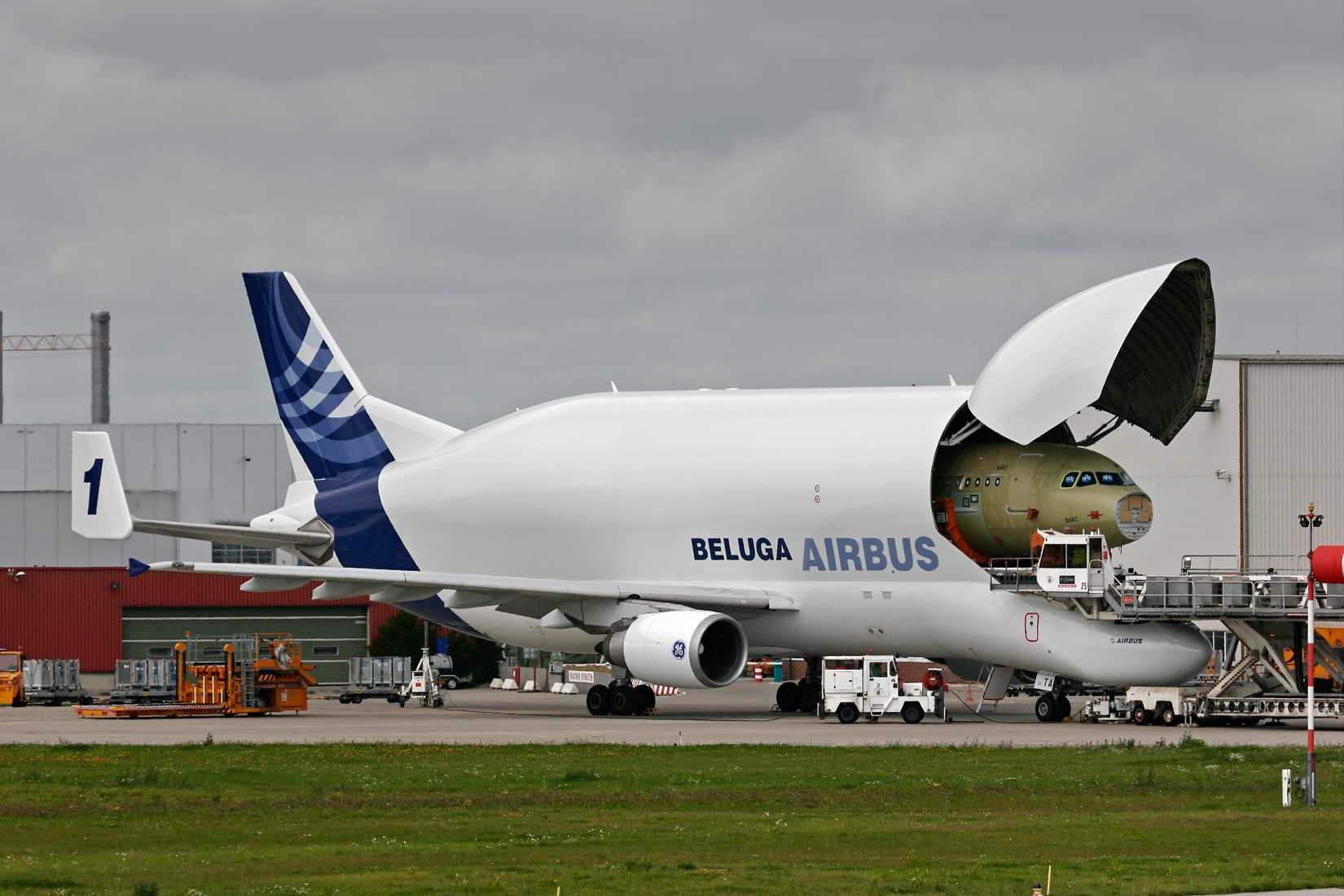

While Boeing was new to the outsourcing and decentralized production game with the 787, Airbus had been doing it since day one. Airbus initially used a fleet of two Aero Spacelines Super Guppies to transport A300 components to the final assembly line in Toulouse, and later grew the Super Guppy fleet to four in the 1980s. But these planes were old and increasingly maintenance-intensive, leading Airbus to search for alternatives. In the 1990s, it elected to develop the Beluga, based on the Airbus A300-600.

Officially known as the A300-600ST (Super Transporter), the Beluga features a modified fuselage designed to carry completed fuselage sections and aircraft wings. Like the Dreamlifter, the cargo hold of the Beluga is unpressurized. Unlike the Dreamlifter, however, the Beluga is loaded through a large door at the front of the plane, and the cockpit is located below the main cargo floor. Compared to the Super Guppy, the Airbus Beluga could carry double the payload and boasted 30% more interior volume.

By the 2010s, the A300-600ST Beluga fleet was pushing 20 years old, and the plane couldn’t cope with increased production volumes. As such, Airbus developed what is officially known as the A330-700L, but more commonly referred to as the BelugaXL. The BelugaXL uses the A330-200 as a base, and boasts an even higher payload capacity, as well as more interior volume, with the primary benefit being that it could now carry two A350 wings as opposed to one. There are six BelugaXLs in service, while the first A300-600ST Beluga was retired in January 2026.
